NEW BENCHMARK FOR POWER DENSITY:

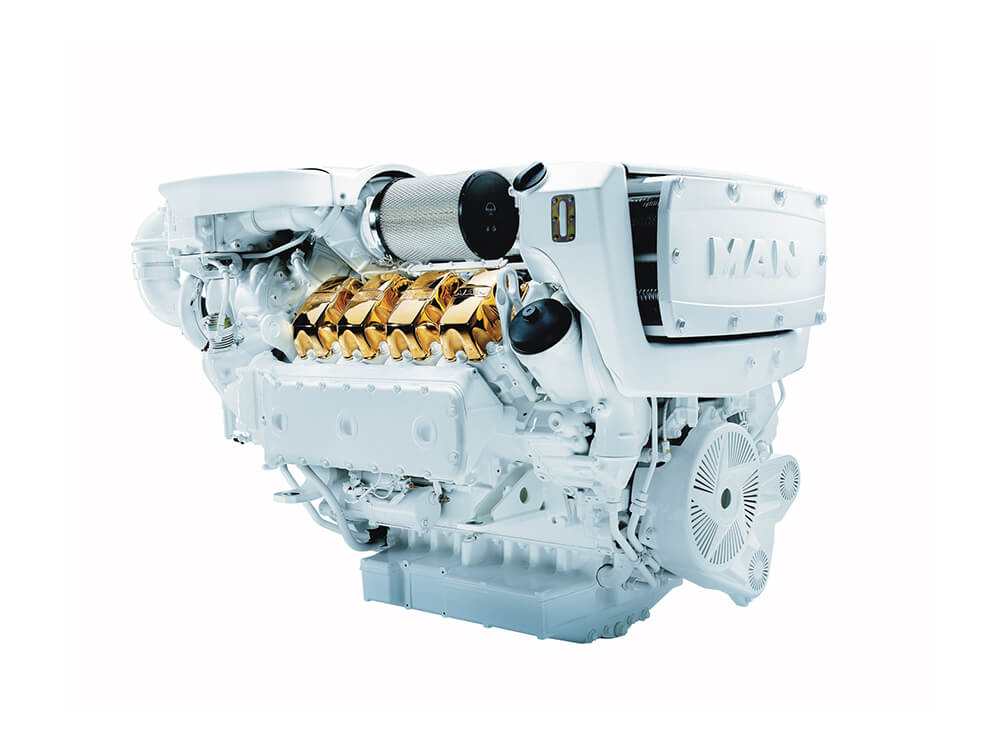

MAN V8-1000 / V8-1200 / V8-1300
A whole fleet of MAN marine diesel engines is waiting for this command. The powerful common rail diesel engines from 730 hp to 1,800 hp impress with their extraordinary dynamics, their extreme running smoothness, economy and their trend-setting environm.
CHARACTERISTICS
Cylinders and arrangement: 8 cylinders in 90° V arrangement
Operation mode: 4-stroke diesel engine, watercooled
Turbocharging: Turbocharger with charge air
intercooler and waste gate (1-stage: V8-1000, 2-stage: V8-1200)
intercooler and waste gate (1-stage: V8-1000, 2-stage: V8-1200)
Number of valves: 4 valves per cylinder
Fuel system: Common Rail direct fuel injection with electronic control
Engine lubrication: Closed system with forced feeding, oil cooling and filtering
Type of cooling: Plate heat exchanger, seawater cooled
Engine control: Electronic injection control (EDC)
Electronic engine monitoring including diagnostic unit
Electronic engine monitoring including diagnostic unit
Fuel: DIN EN 590
TECHNICAL DATA
V8-1000 & V8-1200
| Type designation | V8-1000 | V8-1200 |
|---|---|---|
| Displacement l | 16.16 | 16.16 |
| Maximum output to DIN ISO 3046-1 kW (hp) | 735 (1,000) | 882 (1,200) |
| Rated speed rpm | 2,300 | 2,300 |
| Maximum torque Nm | 3,340 | 4,010 |
| at speed rpm | 1,300 – 2,100 | 1,200 – 2,100 |
| Absolute fuel consumption at rated power 1) l/h | 199 | 240 |
| Classifiable | – | – |
| Exhaust gas status | IMO Tier II, EPA Tier 3, RCD 2013/53/EC, RCD 94/25/EC, 97/68/EC | IMO Tier II, EPA Tier 3 2), RCD 2013/53/EC, RCD 94/25/EC, 97/68/EC |
V8-1300
| Type designation |
V8-1300 |
|
|---|---|---|
| Displacement l |
16.16 |
|
| Maximum output to DIN ISO 3046-1 kW (hp) |
956(1300)
|
|
| Rated speed rpm |
2,300
|
|
| Maximum torque Nm |
4,350
| |
| at speed rpm |
1,200 – 2,100 |
|
| Absolute fuel consumption at rated power 1) l/h |
–
|
|
| Classifiable |
– |
|
| Exhaust gas status |
EPA Tier 3 recreational,
IMO Tier II,
RCD 2013/53/EC, 97/68/EC
|
DIMENSIONS
V8-1000 & V8-1200
| Type designation | V8-1000 | V8-1200 |
|---|---|---|
| A-Overall width mm |
1,153
|
1,153
|
|
B-Overall width mm |
1,745
|
1,745 |
| C-Overall width mm |
1,177
|
1,222
|
| D-Top of engine to crankshaft centre mm |
765
|
811
|
| E-Length of engine from front end to edge of flywheel housing mm |
1,243
|
1,262 |
| Average weight of engine ready for installation (dry) kg |
1,780
|
1,880
|
V8-1300
| Type designation | V8-1000 | |
|---|---|---|
| Bore | 128 | |
Stroke | 157 | |
| Engine length | 1736 | |
| Engine width | 1153 | |
| Engine height | 1222 | |
| Weight (dry) | 1880 | |
Injection system | Common Rail |
